V Slot Linear Actuator
Actuator Kit Now Available
The linear actuator can be used for a whole host of applications, from a simple camera slider, to a modular 3D Printer design. Because this kit uses all standard v-slot parts it can be easily combined with more of these actuators, other types, or a design of your own to quickly build a functional machine.
V-Slot Linear Actuator prototype plates cut from 3mm perspex. There are two end plates (same design) and a modification of the standard V-Slot Gantry Plate.
V Slot Linear Actuator
The gantry plate is 100mm long (instead of the standard 127mm) to fit within the width of the actuator. An Acme Nut Block is mounted underneath and driven by an 8mm Metric Lead Screw. Four Solid V-Wheels (2 with eccentric spacers) guide the gantry along the v-slot.
The two end plates are the same. They have mounting holes for both NEMA17 and NEMA23 stepper motors. There is a recess for a 16mm wide bearing, similar to the Thread Rod Plates, that allows for a 688Z bearing in combination with an 8mm Lock Collar to be used to support the lead screw. Four DIA5.5mm holes allow for the two rails of 2040 V-Slot to be fastened at each end. Another hole below the bearing recess can be used to secure a length of 2060 V-Slot to the bottom of the mechanism if required.
Pneumatic Linear Actuator
The slots of the two 2040 V-Slot rails are at 80mm centers so the actuator can be mounted onto the Ox Plates as a Z-Axis.
V Slot Linear Actuators

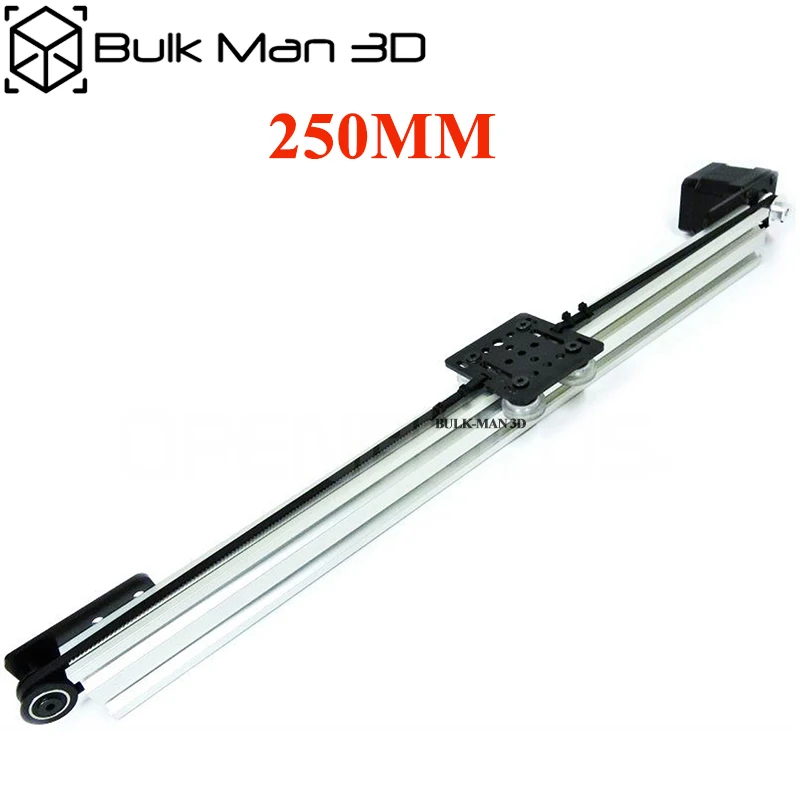

US$24.11 US$25.68 6% Off 2Pcs Linear Actuator End Mount for 2040 V-Slot Linear Rail for 3D Printer 0 review COD US$52.23 US$67.90 23% Off 2000N Linear Actuator 12V DC 30-300mm Stroke Electric Window Opener Linear Motor Tubular Motor 1 review COD. AiCheaX - V-Slot NEMA 17 Linear Actuator Bundle DIY Belt Driven Kit with Nema 17 Stepper Motor for Openbuilds - (Size: Small Gantry Plate): Amazon.com.au: Industrial & Scientific. This V-Slot® Mini V Linear Actuator is modular and can be connected to one another to build all kinds of cool and interesting machines. Actuator Specs: Travel for the 500mm version is 380mm; Travel for the 1000mm version is 880mm; Travel for the 1500mm version is 1380mm. Bundle Contents: (1) All Mechanical Parts (1) NEMA 17 Stepper Motor. Nov 6, 2015 - Explore Devin's board 'Linear actuator' on Pinterest. See more ideas about linear actuator, actuator, linear.
The final plates will all be in 3mm thick black brushed aluminum.
